How capacity is the 1″ Air Operated Double Diaphragm Pump ?
Each manufacturer’s diaphragm pump has its own specific model, and different models have different capacity. Before understanding the flow, let’s first understand what is a pneumatic diaphragm pump? Pneumatic diaphragm pump has four materials: plastic, aluminum alloy, cast iron, stainless steel. It relies on the back and forth agitation of a diaphragm to change the volume of the studio to inhale and discharge liquid. The cylinder head part of the pneumatic diaphragm pump is mainly separated by a diaphragm to separate the conveyed liquid and the working liquid. When the diaphragm moves to one side of the transmission mechanism, the pump cylinder is under negative pressure and sucks the liquid when the diaphragm moves to the other side. , the liquid is discharged. The liquid to be conveyed is separated from the working liquid by the diaphragm in the pump cylinder, and only contacts with the pump cylinder, the suction valve, the discharge valve and the inner side of the diaphragm, and does not contact the plunger and the sealing device, which makes the column Important parts such as plugs work completely in the oil medium and are in good working condition. Saiken diaphragm pump diaphragm is made of PTFE material, and the reciprocating life can reach 7 million times.

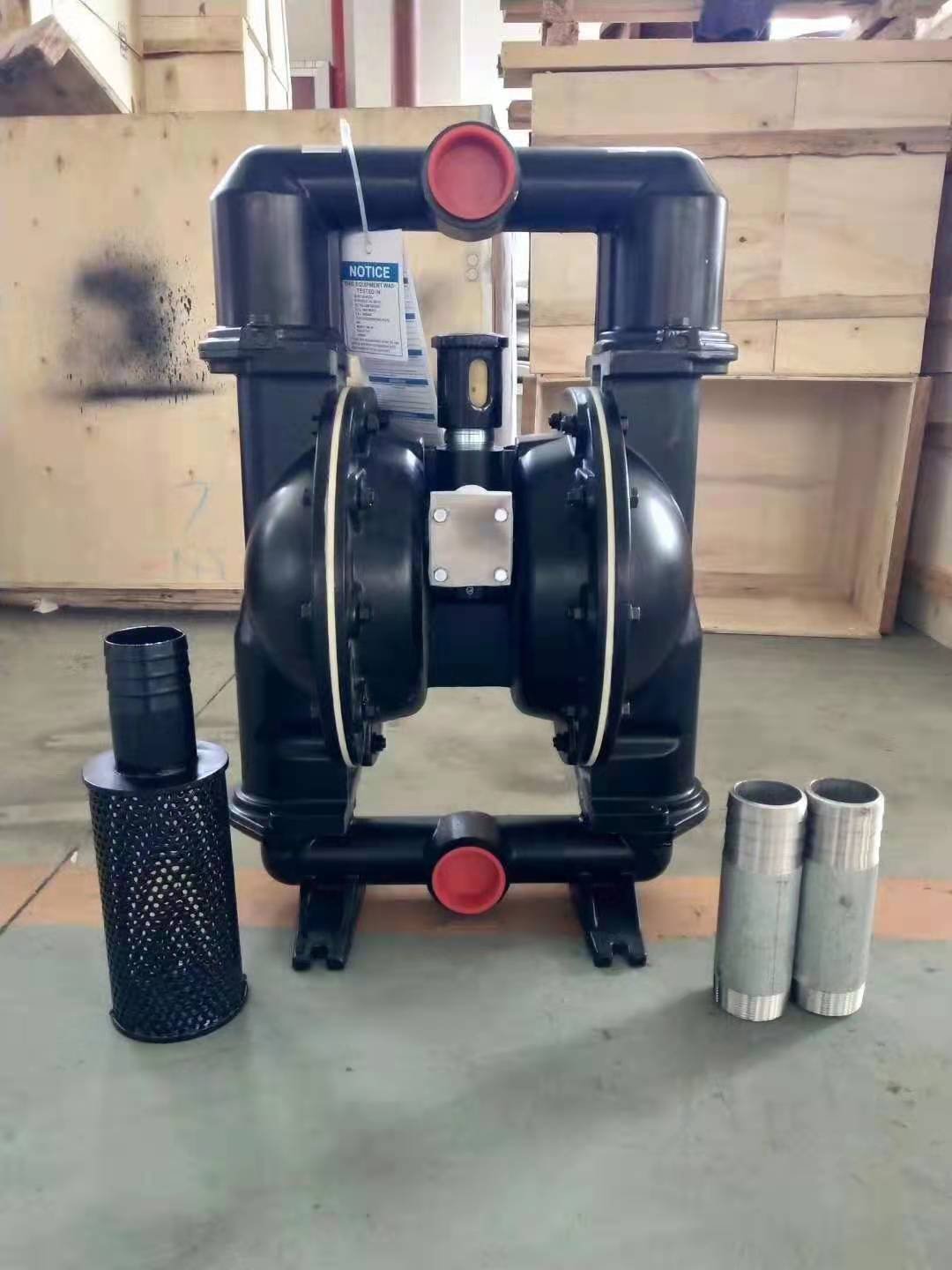

Take Saiken brand AODD PUMP as an example:
1 inch diaphragm pump, maximum capacity 57L/min, Max. Head: 70m, outlet pressure: 7bar, inlet and outlet size: 1″, air inlet: 1/4″, maximum particle size is 2.5mm
