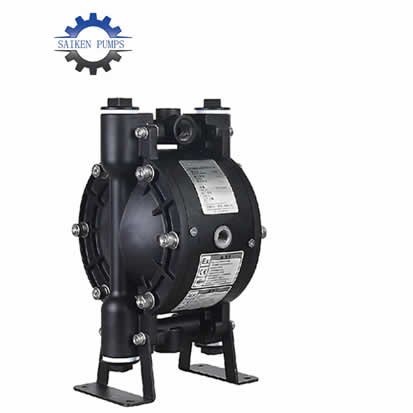

Pneumatic diaphragm pump features:
1, do not need irrigation water, suction up to 7m, head up to 50m, outlet pressure)6kgf/CmZ.
2, good flow performance, allowing the maximum particle diameter of 10mm. Little wear to the pump when pumping mud and impurities.
3, the head and flow can be stepless adjustment through the valve opening (air pressure adjustment between l – 7kgf/cmZ).
4, the pump has no rotating parts, no shaft seal. By the reciprocating movement of a pair of diaphragm, pumping a variety of media, because the moving parts of the pump and the working medium are completely separated, so that the conveying medium will not leak outwards, avoiding environmental pollution and personal harm.
5, do not use power supply, can be used in flammable, explosive places, safe and reliable.
6, can be immersed in the medium instead of submersible pump pumping liquid.
7, open, stop the pump, just open and close the gas valve to operate. Even if there is no medium pumping for a long time or sudden shutdown due to unexpected circumstances, the pump will not be damaged as a result. Once overloaded, the pump will automatically shut down, with self-protection ability. When the load is restored to normal, it can automatically start running.
8, simple structure, less wearing parts. Diaphragm pump has simple structure, convenient installation and maintenance. Pump conveying medium will not touch the valve, connecting rod and other moving parts, to avoid the parts of corrosion and wear.
9, can transport more clear liquid.
10, do not use oil lubrication, even idling, there is no effect on the pump.
