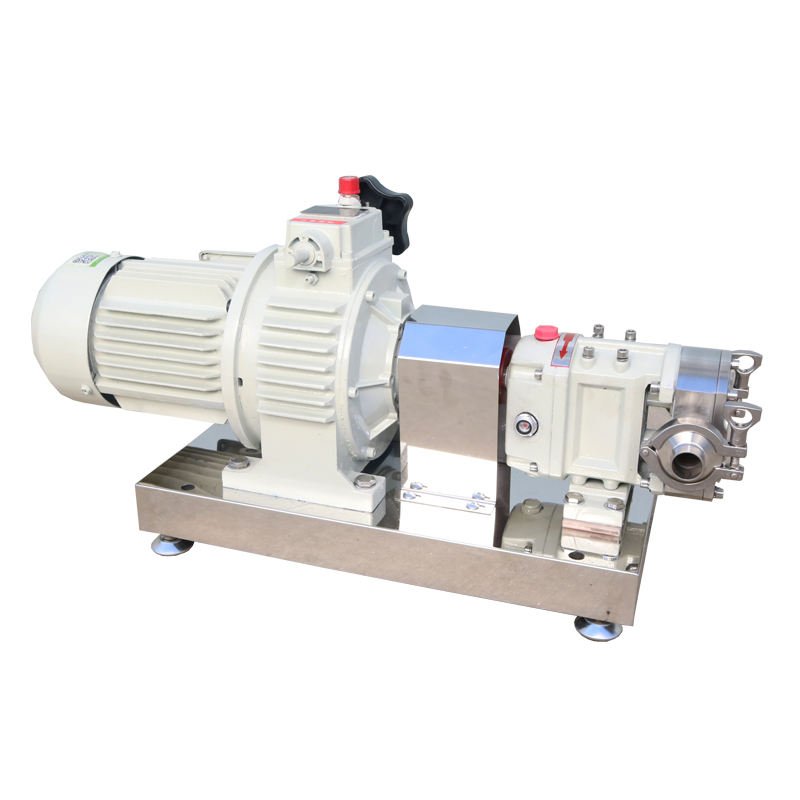

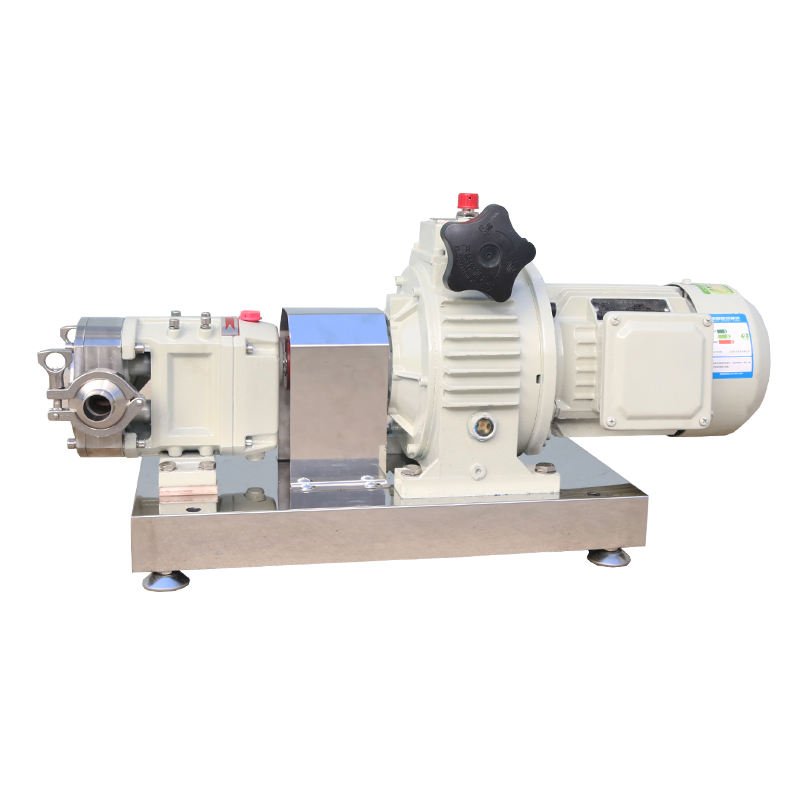

High viscosity rotary lobe pump for glycerin grease oyster sauce

Description

Stainless steel High viscosity glycerin grease oyster sauce transfer pump

Saiken offers Sanitary grade rotary lobe pumps to transfer glycerin grease oyster sauce. The low speed rotating, Saiken pump can protect glycerin grease oyster sauce no change and damage. Pump Max. flow can be upto 180m3/H, pressure is up to 10Bar.

Glycerol is also called glycerine or glycerin. It is a colorless, odorless, viscous liquid that is sweet-tasting and non-toxic. The glycerol backbone is found in many lipids which are known as glycerides.
. It is widely used in the food industry as a sweetener and humectant in pharmaceutical. Glycerol has three hudroxyl groups that are responsible for its solubility in water and its hygroscopic nature.

Grease alternate name lubricating grease, Thick oily semisolid. It is used for lubrication and sealing of the friction part of machinery. It is also used on metal surfaces to fill voids and prevent rust. It is mainly made of mineral oil (or synthetic lubricating oil) and thickening agent.

Oyster Sauce dark brown liquid condiment and is very commonly used in Chinese cooking. It has a sweet, salty, and deeply savory flavor. It is made from essence or extract of oyster, with a few other ingredients, such as caramel and cornstarch. It contains an umami flavor with a strong resemblance to seafood, and is a great flavor enhancer in cooking.

Working Principle

Seiken rotary lobe pumps are especially suitable for conveying chemical products with high viscosity, high solid content and strong corrosiveness. Seiken Pumps is committed to using the latest innovations to improve pump performance and seal reliability to help customers improve production efficiency and ensure safety!

high viscosity Lobe Pump Configuration of food grade seal, can also transfer many food grade liquids such as the following：

Technical specifications:

◆ Maximum flow: 80m3 / H
◆ Maximum pressure: 10bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 960 rpm
◆ Material: ASTM 304/316L, 1.4404
◆ Horizontal TUL
◆ Vertical TUR
◆ Butterfly rotor (standard)
◆ Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
◆ Suitable for food processing, chocolate, beverages, juices, dairy products, cosmetics, pharmaceutical industries,CIP cleaning and SIP sterilization

Product Name:	LP Series Hygienic Lobe Pumps
Material Science:	SS304 / SS316L
sealing material:	EPDM (Standard, FDA Approval)
Maximum flow:	2~1110GPM
Maximum pressure:	4~10bar
Maximum permissible fluid temperature:	100°C(212°F)/ 200°C(392°F) -water-cooling
Specification of power supply:	110V,220V,240V,380V,400V,415V,440V 50hz / 60hz
Connection type:	Fast clamping, flange, thread, SMS, barb, square port
Motor power:	1~30kw
Entry/Exit location:	Horizontal or vertical
Maximum viscosity:	1×1000000CST
Optional criteria:	DIN,SMS,3A,RJT,ISO / IDF
Scope of application:	Dairy products, food, beverages, pharmacies, cosmetics, etc.
Maximum diameter:	1″/1.2″/1.5″/2″/2.5″/3″/4″/6″
Rotor type:	Single leaf, double leaf, three leaf, four leaf, axe head, spiral
Sealing material:	EPDM (standard, FDA approved)
Sealing options:	PTFE/hygienic single mechanical seal / double mechanical seal with cooling system
Packaging details:	Plywood box or custom. Or according to customer

Saiken rotary lobe pumps are widely used in the food industry. mainly because of the following characteristics:
■High sanitation: The wetted parts are manufactured in stainless steel 304 316 or 316L.
■High smoothness: surface roughness is below 0.8  μm, confirming to 3A, EHEDG, FDA standard.
■Meet CIP and SIP requirements.
■Simple disassembly and asembly, easy maintenance and few wearing parts.
■Low speed, low shear, no damage to the pumped products.

Saiken lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.

Technological parameter:

Model	LITER/100REV	SIZE mm	PRESSURE RATING BAR	MAXIMUM SPEED RPM	POWER kw
LP-6	6	25	10	960	0.75
LP-9	9	32	10	960	1.1
LP-18	18	40	10	960	1.5
LP-36	36	50	10	720	2.2
LP-60	60	65	10	720	4
LP-105	105	80	10	600	7.5
LP-180	180	100	10	600	11
LP-250	250	125	10	600	15
LP-325	325	150	10	400	18.5
LP-525	525	150	10	400	22
LP-700	700	200	10	400	37

SAIKEN is a Chinese leading manufacturer in high viscosity Lobe Pump and Automatic filling machine.
Providing its customers with customized pumping and
mixing solutions and solving their problems during the production.
Saiken pumps and Automatic filling machine widely used in food, dairy, beverages,
chemical, pulp&paper, soaps&detergents, pharmaceuticals, pesticide,
coatings etc. We are looking forward to be partner with you.
