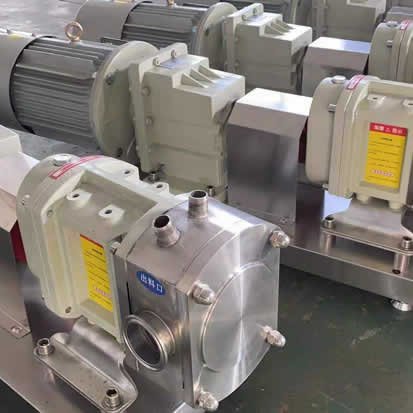

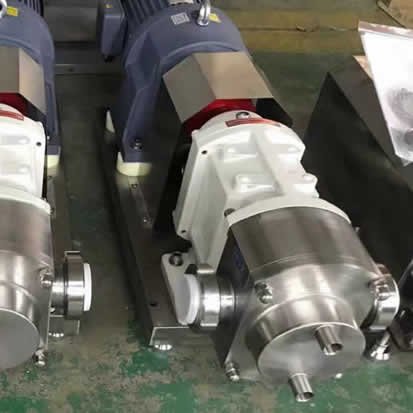

Jacketed Lobe Pump / Rotary lobe pump with Heating Jacket
Saiken manufacturer lobe pumps have a heating or cooling jacket design for applications that require a heating or cooling jacket to maintain product condition. The heating medium runs in the jacket, heating the pump body, preventing the pumped product from solidifying in the pump body, thereby preventing the motor from being overloaded. This structure also prevents the pumped product from solidifying on the mechanical seal surface and avoids seal damage. SAIKEN jacketed lobe pumps are suitable for conveying products whose viscosity is greatly affected by temperature, such as chocolate, syrup, etc.
Description

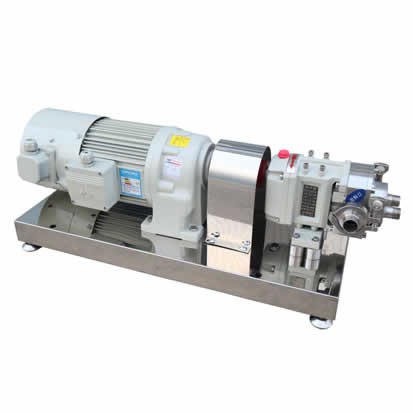

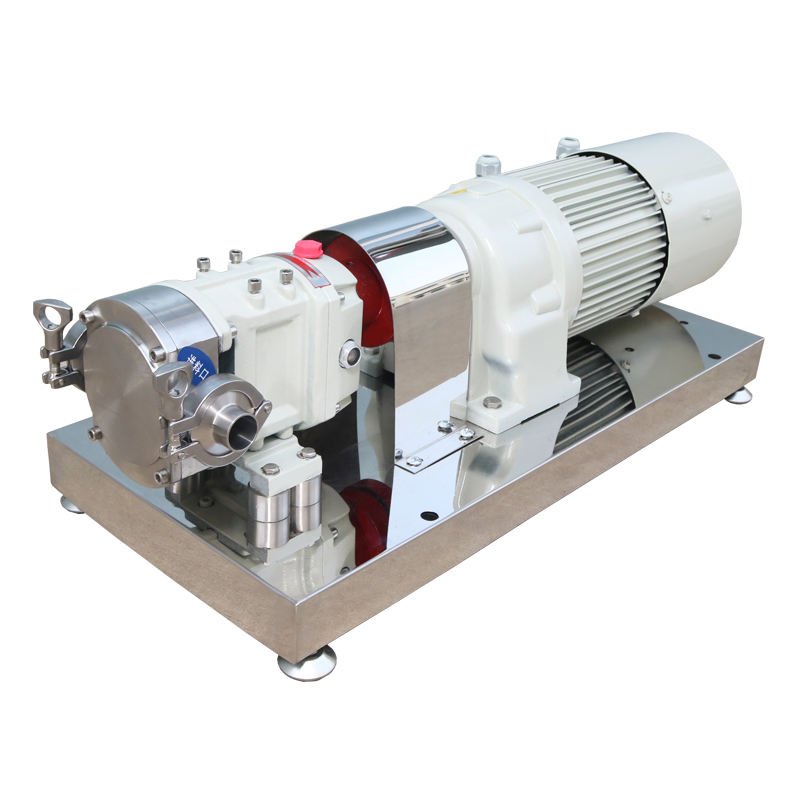

The Saiken Positive Displacement Lobe Pump with sanitary design suitable for use in the dairy, food-processing, beverage, cosmetics, pharmaceutical and fine chemicals industries. This sanitary lobe pump is perfect for managing all kinds of fluid, of either low or high viscosity, as well as for filtering and bottling applications. It is bare shaft rotary lobe pump. It is made of sanitary stainless steel pump casing and cover, and tri-lobe or twin-lobe rotors with sanitary attachment.
Working Principle
Saiken Sanitary Rotary Lobe Pumps are used in a wide range of processes. Their reliable low shear flow characteristics are ideal for conveying starch paste, ketchup, chocolate, syrup, honey, jam, sauce products and other media. We select pumps according to your medium characteristics and process requirements to bring the best pump for your critical process, to your and your customers’ satisfaction.
Technical specifications:
◆ Maximum flow: 80m3 / H
◆ Maximum pressure: 10bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 960 rpm
◆ Material: ASTM 304/316L, 1.4404
◆ Horizontal TUL
◆ Vertical TUR
◆ Butterfly rotor (standard)
◆ Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
◆ Suitable for food processing, chocolate, beverages, juices, dairy products, cosmetics, pharmaceutical industries,CIP cleaning and SIP sterilization
| Product Name: | LP Series Hygienic Lobe Pumps |
| Material Science: | SS304 / SS316L |
| sealing material: | EPDM (Standard, FDA Approval) |
| Maximum flow: | 2~1110GPM |
| Maximum pressure: | 4~10bar |
| Maximum permissible fluid temperature: | 100°C(212°F)/ 200°C(392°F) -water-cooling |
| Specification of power supply: | 110V,220V,240V,380V,400V,415V,440V 50hz / 60hz |
| Connection type: | Fast clamping, flange, thread, SMS, barb, square port |
| Motor power: | 1~30kw |
| Entry/Exit location: | Horizontal or vertical |
| Maximum viscosity: | 1×1000000CST |
| Optional criteria: | DIN,SMS,3A,RJT,ISO / IDF |
| Scope of application: | Dairy products, food, beverages, pharmacies, cosmetics, etc. |
| Maximum diameter: | 1″/1.2″/1.5″/2″/2.5″/3″/4″/6″ |
| Rotor type: | Single leaf, double leaf, three leaf, four leaf, axe head, spiral |
| Sealing material: | EPDM (standard, FDA approved) |
| Sealing options: | PTFE/hygienic single mechanical seal / double mechanical seal with cooling system |
| Packaging details: | Plywood box or custom. Or according to customer |
Saiken rotary lobe pumps are widely used in the food industry. mainly because of the following characteristics:
■High sanitation: The wetted parts are manufactured in stainless steel 304 316 or 316L.
■High smoothness: surface roughness is below 0.8 μm, confirming to 3A, EHEDG, FDA standard.
■Meet CIP and SIP requirements.
■Simple disassembly and asembly, easy maintenance and few wearing parts.
■Low speed, low shear, no damage to the pumped products.
Saiken lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
Technological parameter:
| Model | LITER/100REV | SIZE mm | PRESSURE RATING BAR | MAXIMUM SPEED RPM | POWER kw |
| LP-6 | 6 | 25 | 10 | 960 | 0.75 |
| LP-9 | 9 | 32 | 10 | 960 | 1.1 |
| LP-18 | 18 | 40 | 10 | 960 | 1.5 |
| LP-36 | 36 | 50 | 10 | 720 | 2.2 |
| LP-60 | 60 | 65 | 10 | 720 | 4 |
| LP-105 | 105 | 80 | 10 | 600 | 7.5 |
| LP-180 | 180 | 100 | 10 | 600 | 11 |
| LP-250 | 250 | 125 | 10 | 600 | 15 |
| LP-325 | 325 | 150 | 10 | 400 | 18.5 |
| LP-525 | 525 | 150 | 10 | 400 | 22 |
| LP-700 | 700 | 200 | 10 | 400 | 37 |
SAIKEN is a Chinese leading manufacturer in Rotary Lobe Pumps and Automatic filling machine.
Providing its customers with customized pumping and
mixing solutions and solving their problems during the production.
Saiken pumps and Automatic filling machine widely used in food, dairy, beverages,
chemical, pulp&paper, soaps&detergents, pharmaceuticals, pesticide,
coatings etc. We are looking forward to be partner with you.
