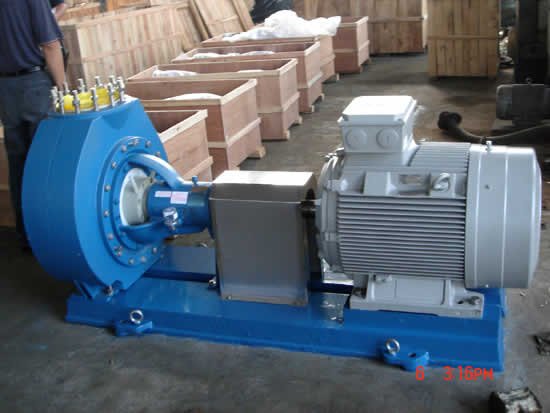

polypropylene Plastic Standardized Chemical Pump

Description

All pumps are made of a range of durable plastics such as polypropylene, PTFE, PVC and PVDF to meet heavy duty standards, and all pumps are machinated from solid block materials. This ensures ultimate robustness against adverse conditions.

Performance data

Pump capacity: up to 500 m³/h
Total differential head: up to 100 m
Operating temperature [t]: -20°C up to +110 °C
Operating pressure [p]: up to 10 bar
Diameter of discharge nozzle: DN 25 up to DN 250
Drive rating [P]: up to 200 kW

1.Chlor-Alkali Electrolysis
2.Sulphuric acid
3.Steel and Stainless steel pickles
4.Titanium dioxide
5.Phosphoric acid
6.Sea water
7.Waste incineration (flue gas cleaning)
8.Scrubber
9.Waste water
10.Hydrochlorid acid

Type: Horizontal, single-stage
Construction: Back-pull-out design according to ISO 2858
Impeller:Closed or semi-open
Sealings: Single type or double type

Bearing lubrication: Grease

Installation versions: Base frame welded or cast iron base plate

Ambient temperature: -20deg.c to 60deg.c

Solid content limit value: approx. 5 %

Materials: PP,PE,UHMW-PE,PVDF,FEP,PFA

Operation temp: Up to 110 deg.c

---
