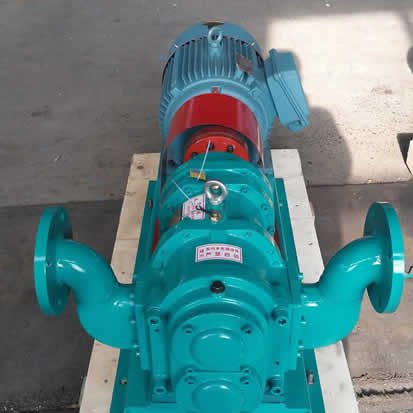

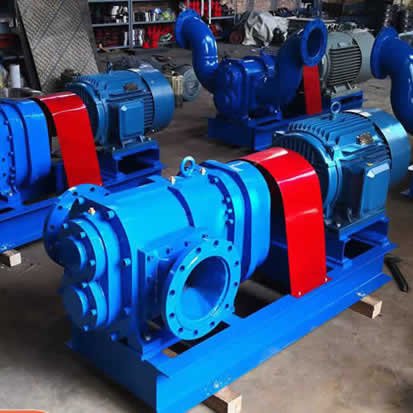

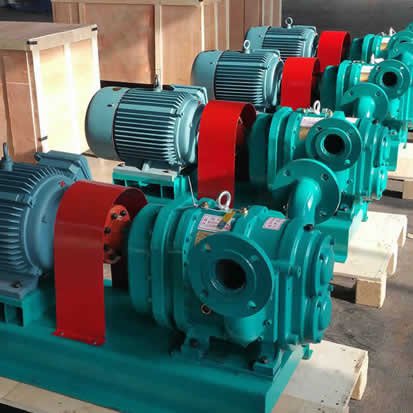

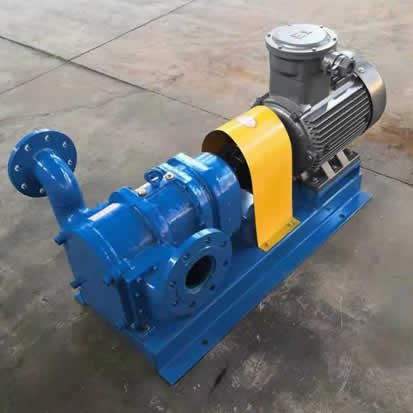

RPB Rotary Rubber Rotor Pump For Sludge

Description

RPB Rubber lobe pump,also called as sludge lobe pump or sludge rotor pump, can be made of cast iron or ductile iron or stainless steel ,Tri-lobe, Helical, EPDM coated rotors , shaft Hardened Steel, suitable for wastewater,chemical,oil.etc industry

1. RPB helical flexible rotor pump is a positive displacement pump, its rotors are driven by two synchromesh gears of parallel axis, and running oppositely. Rotor and pump body form one sealed cavity after another, the running rotors push liquid to discharge pump cavity, and form vacuum state on inlet port to suck liquid.
2. The helical rotor pump is used to transfer all kinds of high viscosity liquids, such as epoxy resin, polymer, solvent, detergent, fire fighting foamer, etc.
3. The structure of pump is perfectly symmetrical, the delivery direction of pump is available to change by the driven direction.
4. Good self-priming ability, the maximum suction could be reach to 9m.
5. Simple structure, various installation mode, energy-efficient.
6. All kinds of rotor types for different application: double linear rotor, three linear rotor, three helical rotor. And rotor materials could be rubber or metal.
7. Widely used in meat processing plant, daily-use chemical industry, fine chemical engineering, petrochemical industry, pharmaceuticals, foodstuff, environmental protection, chemical fiber, etc.

Capacity :0.2~1230 m3/h
Pressure:0~ 1.8 Mpa
Caliber: 1 inch~14 inch
Max Viscosity : 100000 cp
Drive: Electric Motor
Connection:Coupling
Pump Casing: Cast Iron, ductile iron, Stainless steel
Helical rotor material: Tri-lobe, Helical, rubber, EPDM coated rotors

Large bucket geometry and short passage through the pump provide a smooth transfer of the pumped fluid.

Can be used for delivery mixing gas,liquid,particle , big lumps,fibre,hair, and never be blocked.
Pump works in unrestricted reversible.
High capacity of self-priming,maximum at 8.5 meters.
With a Has a separated sealing cavity,keeping wetted,which makes short time running idle available when lacking medium.
Suitable for transfer differents medium, casing and rotor can be customized according to client’s request.
