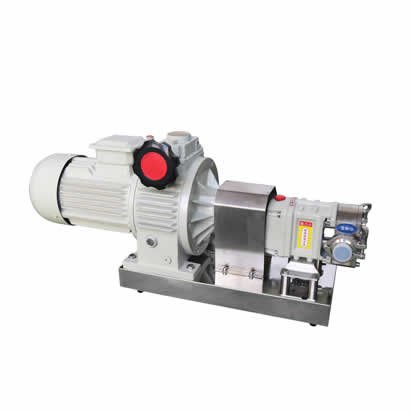

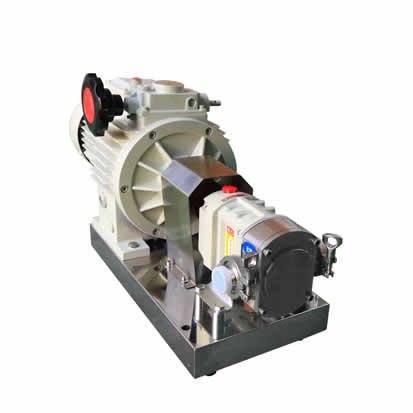

Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)
Saiken Sanitary Rotary Lobe Pumps that require no drive and range in size from 1″ to 8″. The flow range is 6-700L/100r. The first choice in pump family to transfer the liquid which has high viscosity, high denstiy, high solid and strong corrosion. Protect the original product without damage.
Description
Saiken Sanitary Rotary Lobe Pumps are for use in the production of food and beverages. They are fully hygienic and ideal for use in dairies and prepared food applications. They offer Three vane, Rotary lobe pumps make ideal sanitary pumps as they offer a gentle low shear pumping action, the ability to handle solids and viscous products.
![Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps](https://www.chinagearpumps.com/wp-content/uploads/2022/08/2022082308085316.jpg)
Working Principle
![Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps](https://www.chinagearpumps.com/wp-content/uploads/2022/08/2022082309333051.jpg)
Saiken Sanitary Rotary Lobe Pumps are used in a wide range of processes. Their reliable low shear flow characteristics are ideal for conveying starch paste, ketchup, chocolate, syrup, honey, jam, sauce products and other media. We select pumps according to your medium characteristics and process requirements to bring the best pump for your critical process, to your and your customers’ satisfaction.
![Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps](https://www.chinagearpumps.com/wp-content/uploads/2022/08/2022080702561130-984x1024.jpg)
Technical specifications:
◆ Maximum flow: 80m3 / H
◆ Maximum pressure: 10bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 960 rpm
◆ Material: ASTM 304/316L, 1.4404
◆ Horizontal TUL
◆ Vertical TUR
◆ Butterfly rotor (standard)
◆ Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
◆ Suitable for food processing, chocolate, beverages, juices, dairy products, cosmetics, pharmaceutical industries,CIP cleaning and SIP sterilization
Product Name: | LP Series Hygienic Lobe Pumps |
Material Science: | SS304 / SS316L |
sealing material: | EPDM (Standard, FDA Approval) |
Maximum flow: | 2~1110GPM |
Maximum pressure: | 4~10bar |
Maximum permissible fluid temperature: | 100°C(212°F)/ 200°C(392°F) -water-cooling |
Specification of power supply: | 110V,220V,240V,380V,400V,415V,440V 50hz / 60hz |
Connection type: | Fast clamping, flange, thread, SMS, barb, square port |
Motor power: | 1~30kw |
Entry/Exit location: | Horizontal or vertical |
Maximum viscosity: | 1×1000000CST |
Optional criteria: | DIN,SMS,3A,RJT,ISO / IDF |
Scope of application: | Dairy products, food, beverages, pharmacies, cosmetics, etc. |
Maximum diameter: | 1″/1.2″/1.5″/2″/2.5″/3″/4″/6″ |
Rotor type: | Single leaf, double leaf, three leaf, four leaf, axe head, spiral |
Sealing material: | EPDM (standard, FDA approved) |
Sealing options: | PTFE/hygienic single mechanical seal / double mechanical seal with cooling system |
Packaging details: | Plywood box or custom. Or according to customer |
Saiken rotary lobe pumps are widely used in the food industry. mainly because of the following characteristics:
■High sanitation: The wetted parts are manufactured in stainless steel 304 316 or 316L.
■High smoothness: surface roughness is below 0.8 μm, confirming to 3A, EHEDG, FDA standard.
■Meet CIP and SIP requirements.
■Simple disassembly and asembly, easy maintenance and few wearing parts.
■Low speed, low shear, no damage to the pumped products.
Saiken lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
![Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps](https://www.chinagearpumps.com/wp-content/uploads/2022/08/2022080703234469-1024x371.png)
![Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps Sanitary Rotary Lobe Pumps With Variable Frequency Drive (VFD)-China Saiken Pumps](https://www.chinagearpumps.com/wp-content/uploads/2022/08/2022080703241430.jpg)
Technological parameter:
Model | LITER/100REV | SIZE mm | PRESSURE RATING BAR | MAXIMUM SPEED RPM | POWER kw |
LP-6 | 6 | 25 | 10 | 960 | 0.75 |
LP-9 | 9 | 32 | 10 | 960 | 1.1 |
LP-18 | 18 | 40 | 10 | 960 | 1.5 |
LP-36 | 36 | 50 | 10 | 720 | 2.2 |
LP-60 | 60 | 65 | 10 | 720 | 4 |
LP-105 | 105 | 80 | 10 | 600 | 7.5 |
LP-180 | 180 | 100 | 10 | 600 | 11 |
LP-250 | 250 | 125 | 10 | 600 | 15 |
LP-325 | 325 | 150 | 10 | 400 | 18.5 |
LP-525 | 525 | 150 | 10 | 400 | 22 |
LP-700 | 700 | 200 | 10 | 400 | 37 |
SAIKEN is a Chinese leading manufacturer in Sanitary Rotary Lobe Pumps and Automatic filling machine.
Providing its customers with customized pumping and
mixing solutions and solving their problems during the production.
Saiken pumps and Automatic filling machine widely used in food, dairy, beverages,
chemical, pulp&paper, soaps&detergents, pharmaceuticals, pesticide,
coatings etc. We are looking forward to be partner with you.
