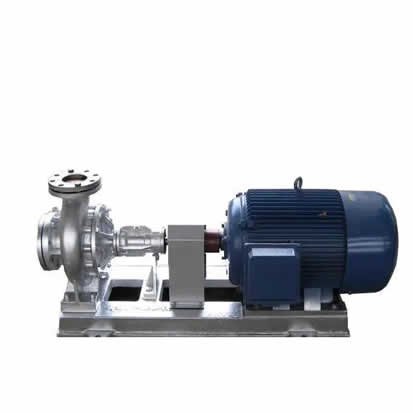

Stainless Steel Hot Cooking Oil Transfer Pump

Description

The Stainless Steel Hot Cooking Oil Transfer Pump is used for food oil processing, filling and conveying section of product oil with a capacity of 2-300m³/h and a head of 10-110meters.
Usually, the materials of the flow part are cast steel, stainless steel 304, SS316, SS316L.
The volute and impeller flow path are polished with three sandblasting so as to meet food-grade requirements.
WRY series hot oil pump:
(1) Adopts packing seal and mechanical seal combination, and the packing seal packing with high temperature resistance, with good thermal adaptability, and mechanical seal with high mechanical strength, good wear resistance of hard alloy material, to ensure the sealing performance under high temperature conditions.
(2) Using the third generation PTFE (PTFE) to do lip type seal, so that the sealing performance leap-forward, 25 times more reliable than the rubber seal reliability, corrosion resistance is very strong.
This hot oil pump is the second generation product based on the research and development of our company after learning and absorption of foreign oil pump. The basic structure is single-stage single suction cantilever leg supporting, the pump inlet is axial suction, export center vertically upward, mounted on the base with motor.
Hot oil pump is supported by the ball bearings at the both ends supported structure, front end lubricated by lubricating oil, back end lubricated by grease, in the middle there is a guide pipe, for observation the sealing condition at any time and the recycling of conduction oil.
The traditional water cooling structure is changed to natural cooling structure, making it simpler structure, smaller volume, lower operation cost, better performance and more reliable usage.

Datasheet:

Model WRY	Inlet/outlet (mm)	Flow （m3/h)	Head (m)	Speed (r/min)	Motor power (kw)	Efficiency η%	NPSH m
WRY26-20-100	26/20	4.5	15	2825	0.75	40	0.8
WRY50-32-150	50/32	8	22	2840	1.5	42	1.1
WRY50-32-160	50/32	10	25	2840	2.2	42	1.2
WRY65-40-160	65/40	12.5	25	2880	3	45	1.2
WRY50-50-170	50/50	12.5	32	2890	4	45	1.2
WRY65-40-190	65/40	18	40	2890	5.5	52	1.4
WRY65-50-180	65/50	32	32	2900	5.5	52	1.7
WRY65-50-170	65/50	40	25	2900	5.5	52	1.8
WRY65-50-160	65/50	52	16	2900	5.5	51	1.9
WRY65-40-200	65/40	25	50	2900	7.5	53	1.6
WRY80-50-180	80/50	40	40	2900	7.5	63	1.8
WRY80-50-170	80/50	60	20	2900	7.5	63	2.8
WRY100-65-190	100/65	60	38	2930	11	68	2.6
WRY100-65-200	100/65	80	40	2930	15	70	3.1
WRY100-65-220	100/65	58	50	2930	15	68	2.4
WRY100-65-210	100/65	90	45	2930	18.5	70	3.4
WRY100-65-235	100/65	58	60.	2930	18.5	62	2.3
WRY100-65-230	100/65	100	55	2940	22	70	3.6
WRY125-100-190	125/100	155	30	2930	22	72	5.6
WRY100-65-240	100/65	100	70	2950	30	69.8	3.5
WRY100-65-257	100/65	100	80	2950	37	67	3.5
WRY125-100-220	125/100	160	45	2950	37	75	5.5
WRY125-80-250	125/80	160	60	2950	45	74	5
WRY125-80-270	125/80	150	85	2970	55	73	4.7
WRY125-100-250	125/100	200	60	2970	55	76.8	6
WRY125-100-257	125/100	260	70	2970	75	77	7.4
WRY125-100-265	125/100	200	80	2970	75	74	5.8
WRY125-100-260	125/100	300	70	2970	90	78.2	8
WRY125-100-270	125/100	220	85	2970	90	76	6
WRY150-125-250	150/125	350	60	2970	90	76	9
WRY150-125-240	150/125	400	50	2970	90	76	10.5
WRY150-125-270Y	150/125	340	76	2970	110	78.6	8.5
WRY150-125-260Y	150/125	400	70	2970	110	74	9.8
WRY150-125-280Y	150/125	400	78	2970	132	80.6	9.8
WRY150-125-285Y	150/125	370	85	2970	132	80	9.5

WRY Single Stage Centrifugal Thermal Oil Pump

Flow Rate	Up to 550m³/hr
Head (Pressure)	Up to 125m
Inlet/Outlet Sizes	DN25 to DN150
Operating Temperature	Up to 380°C
Drive Options	Electric Motor, Engine

The WRY end suction, single stage centrifugal thermal oil pump can be used for thermal oil that is free of solid particles. Common fluids pumped include thermal oil, heat transfer oil, bitumen and low viscosity high temperature industrial oils and common applications include steel plants, plastic manufacturing facilities, heat transfer circulating systems, and the rubber and wood processing industry for boiler feed.

The centrifugal thermal oil pump design has many benefits:

The back pull out design allows the motor to be removed while the pump is still connected to the pipework, this in turn allows time saving while the pump is serviced/maintained.

This thermal oil pump is air cooled meaning no additional cooling device is required.

It is fitted with a high temperature resistant seal allowing it to pump fluids as high as 350°C

Can pump a wide range of low viscosity high temperature oils

Suitable for thermal oils including, Mobiltherm, Paratherm, Duratherm, Multitherm, Dowtherm and Marlotherm

Back pull out design to ensure quick and easy maintenance

Maximum fluid temperature of 380°C

High temperature resistant seal

Air cooled
Independent pump and motor shafts
Single phase and three phase 50hz / 60hz motors. IP55 as standard.
Long coupled with baseplate

If you are interested in this hot oil pump, please contact us ask for catalogue
